Wise-Lock Femoral Neck System

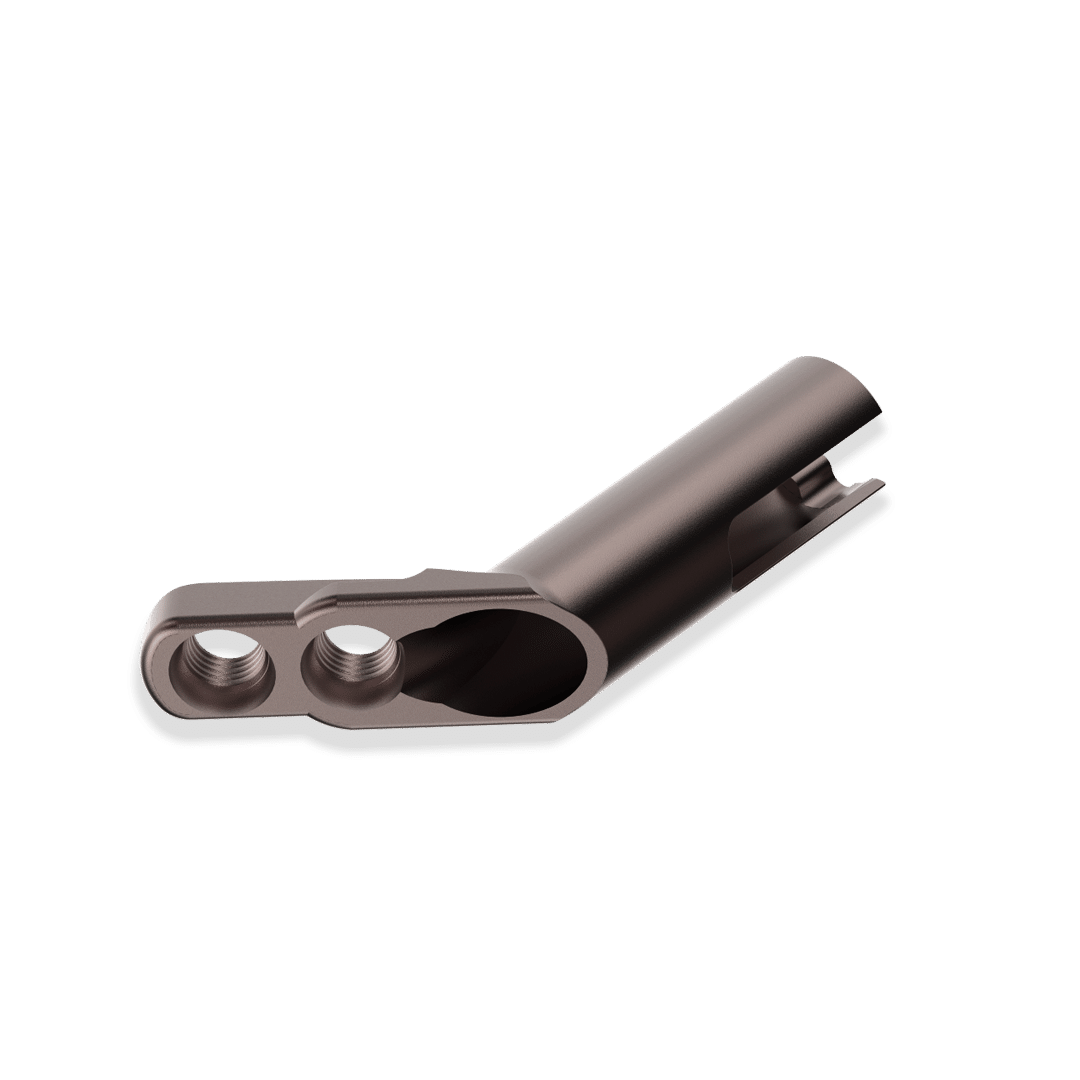

5.0mm Wise-Lock <br>Femoral Neck Plate

5.0mm Wise-Lock Femoral Neck Plate

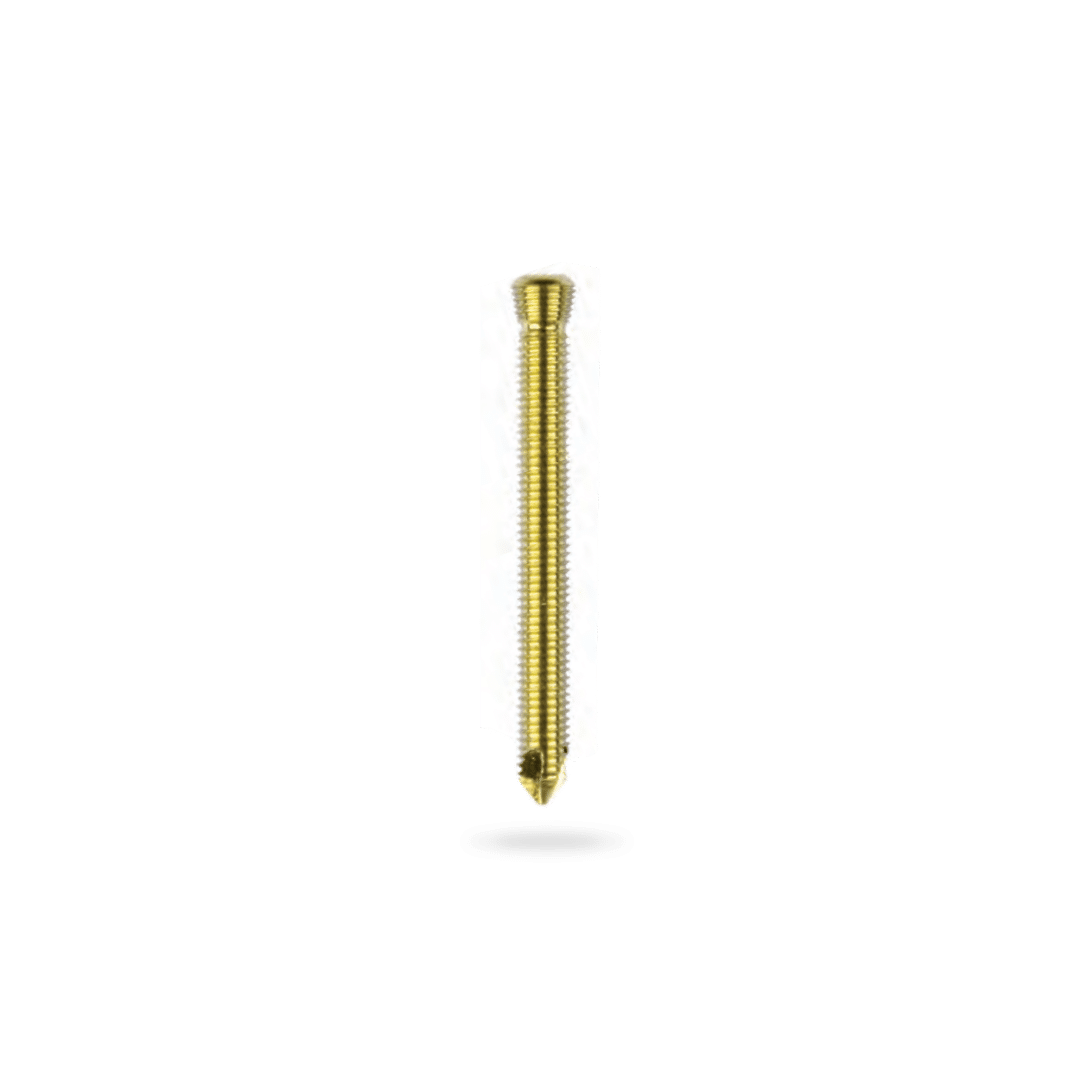

5.0mm Wise-Lock <br>Screw, Self-Tapping

5.0mm Wise-Lock Screw, Self-Tapping

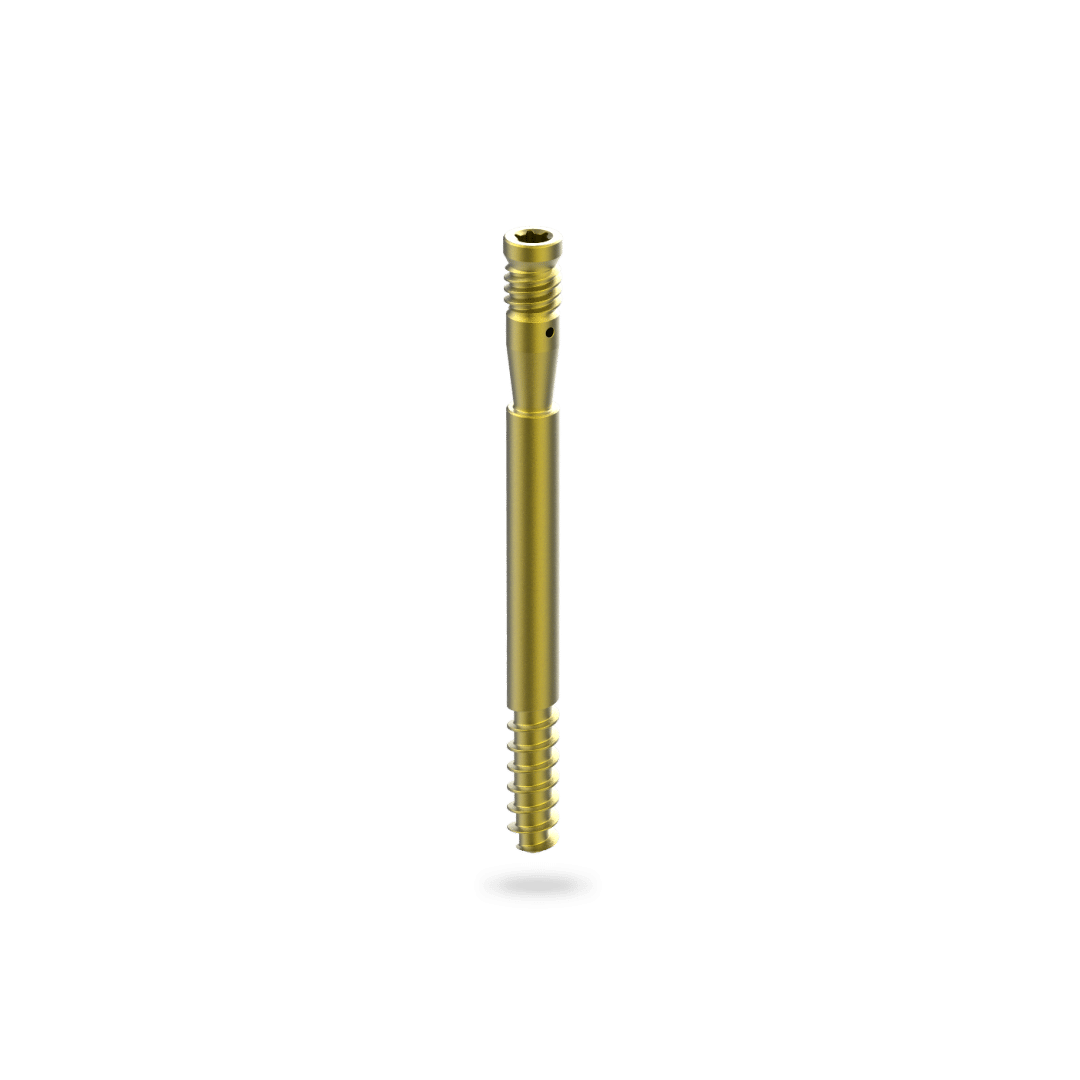

6.4mm Anti-Rotation<br>Screw

6.4mm Anti-Rotation Screw

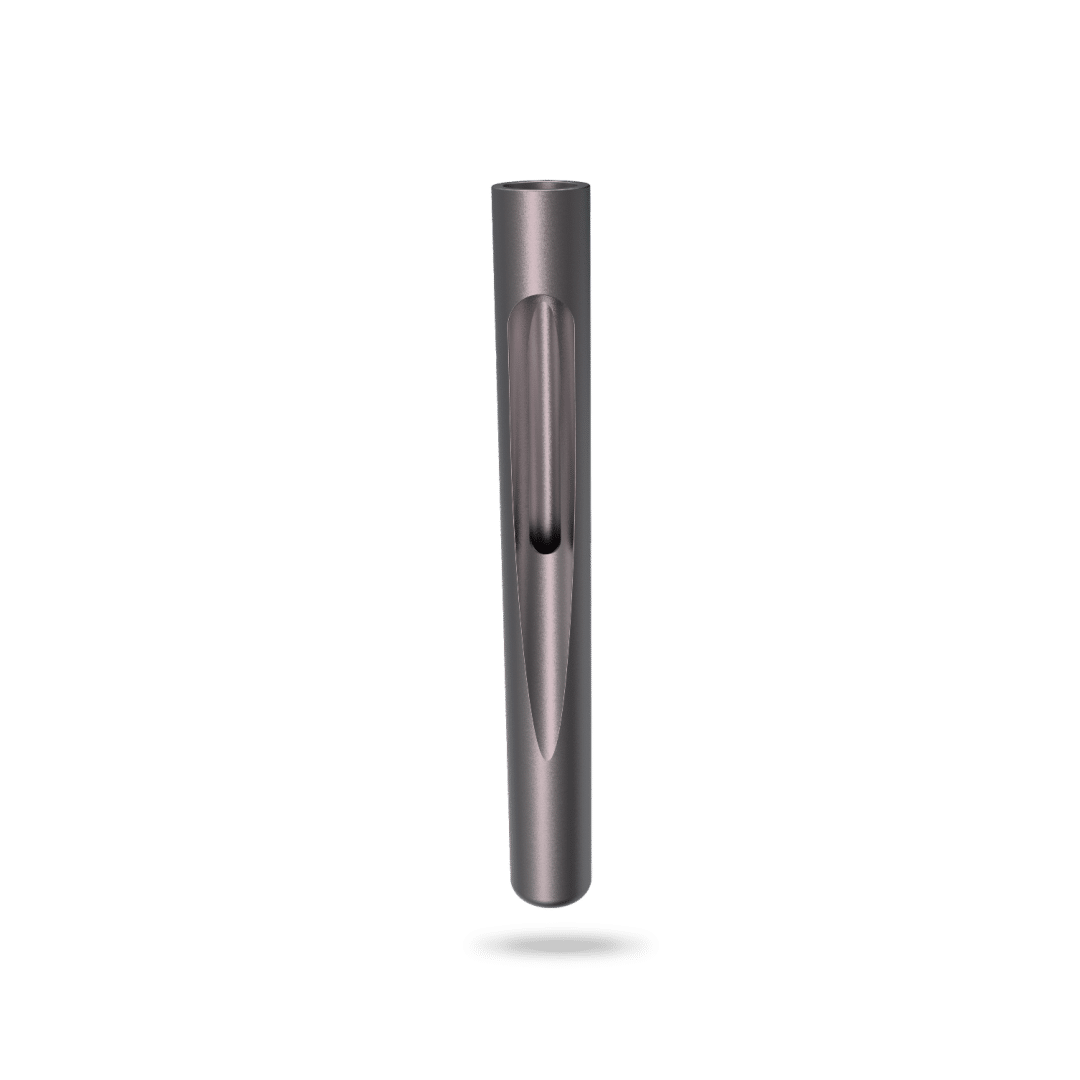

10.0mm Bolt for <br>Femoral Neck Plate

10.0mm Bolt for Femoral Neck Plate

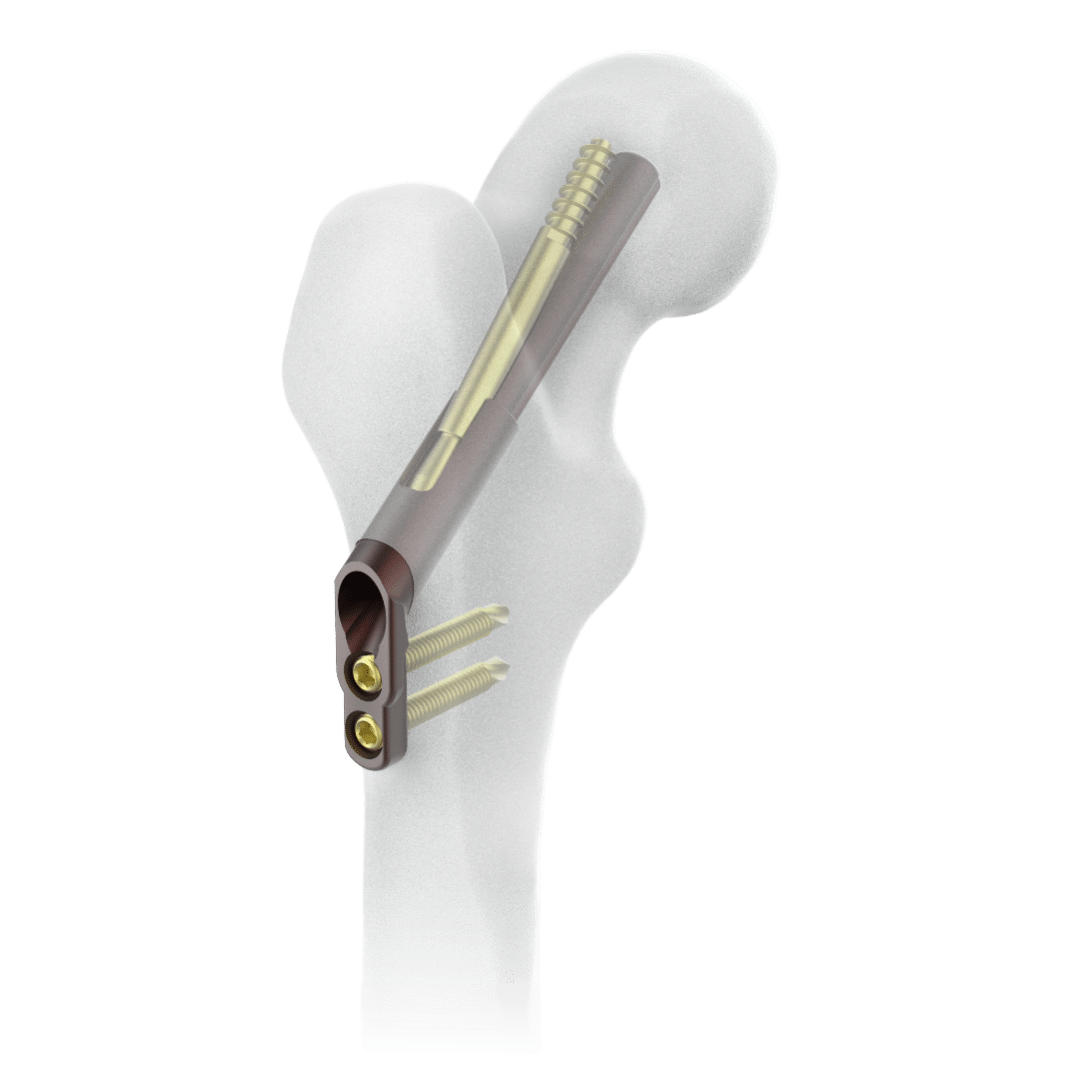

Femoral Neck System

Femoral Neck System

Product Overview

The Femoral Neck System (FNS) is a dedicated solution for femoral neck fractures, designed for improved angular stability and rotational stability with the intent to reduce reoperations related to fixation complications. The Femoral Neck System (FNS) consists of plates, bolts and antirotation screws. The plates accept commercially available 5.0mm Locking Screws. The Femoral Neck System implants are available in construct lengths from 75mm to 130mm, with 1-hole or 2-hole plates. The implants can be used left and right. This system is manufactured from Titanium Alloy.

Wise-Lock Femoral Neck System

5.0mm Wise-Lock <br>Femoral Neck Plate

5.0mm Wise-Lock Femoral Neck Plate

5.0mm Wise-Lock <br>Screw, Self-Tapping

5.0mm Wise-Lock Screw, Self-Tapping

6.4mm Anti-Rotation<br>Screw

6.4mm Anti-Rotation Screw

10.0mm Bolt for <br>Femoral Neck Plate

10.0mm Bolt for Femoral Neck Plate

Femoral Neck System

Femoral Neck System

Product Overview

The Femoral Neck System (FNS) is a dedicated solution for femoral neck fractures, designed for improved angular stability and rotational stability with the intent to reduce reoperations related to fixation complications. The Femoral Neck System (FNS) consists of plates, bolts and antirotation screws. The plates accept commercially available 5.0mm Locking Screws. The Femoral Neck System implants are available in construct lengths from 75mm to 130mm, with 1-hole or 2-hole plates. The implants can be used left and right. This system is manufactured from Titanium Alloy.

Product Features

Enhanced Fixation:

Designed to provide both angular and rotational stability in a single implant intended to reduce reoperations related to fixation complications.

Streamlined Procedure:

Designed for reduced procedural complexity utilizing a technique and insertion handle requiring only a single, central guide wire.

Integrated Rotational Stability:

Regardless of construct size, FNS offers enhanced rotational stability.

Compact Design:

Designed with a small footprint to reduce lateral prominence.

Intended Use

The Femoral Neck System (FNS) is intended for temporary fixation, correction or stabilization of bones in the femoral neck. Specifically,

Femoral neck fractures (AO type 31-B)

Related Documents

Catalogue

5.0mm Wise-Lock Femoral Neck Plate System (Standard)

Certificate

MD-9

Surgical Technique

Femoral Neck Plate System Technique

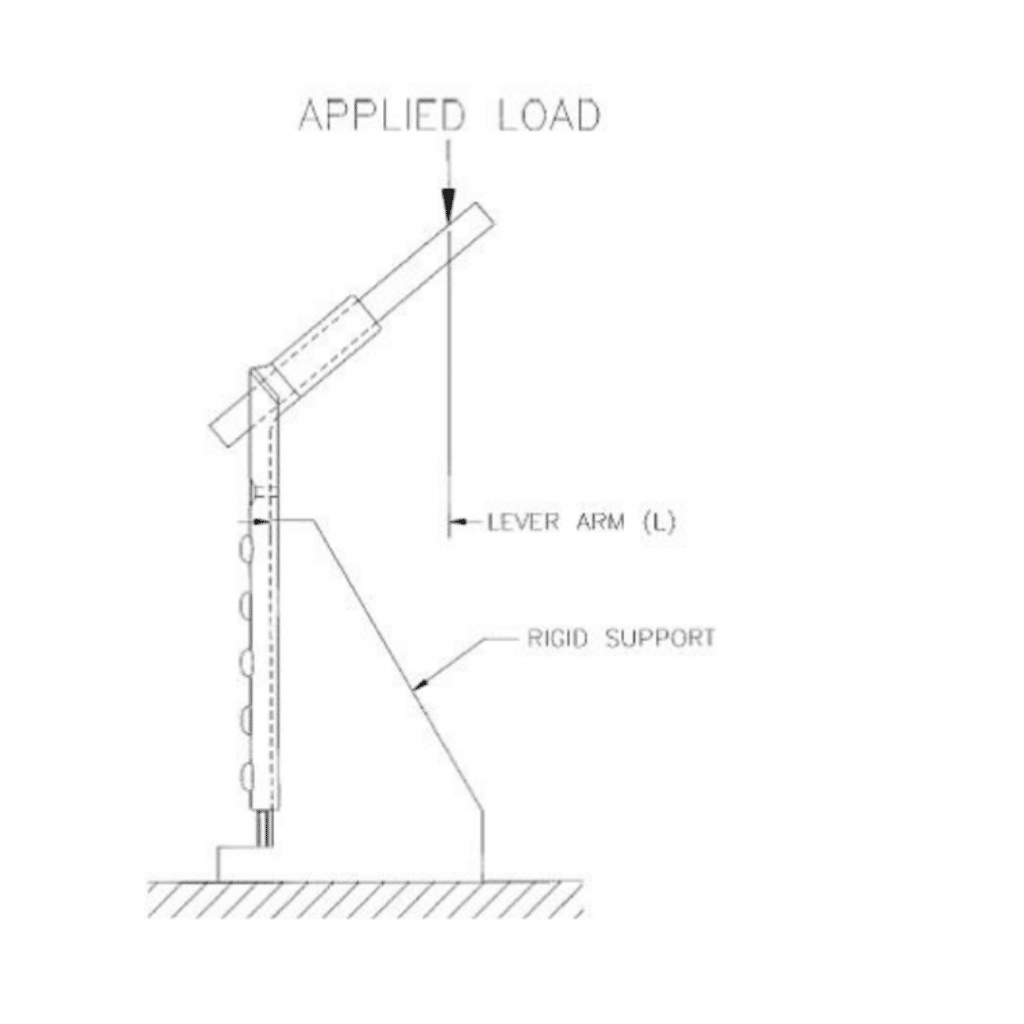

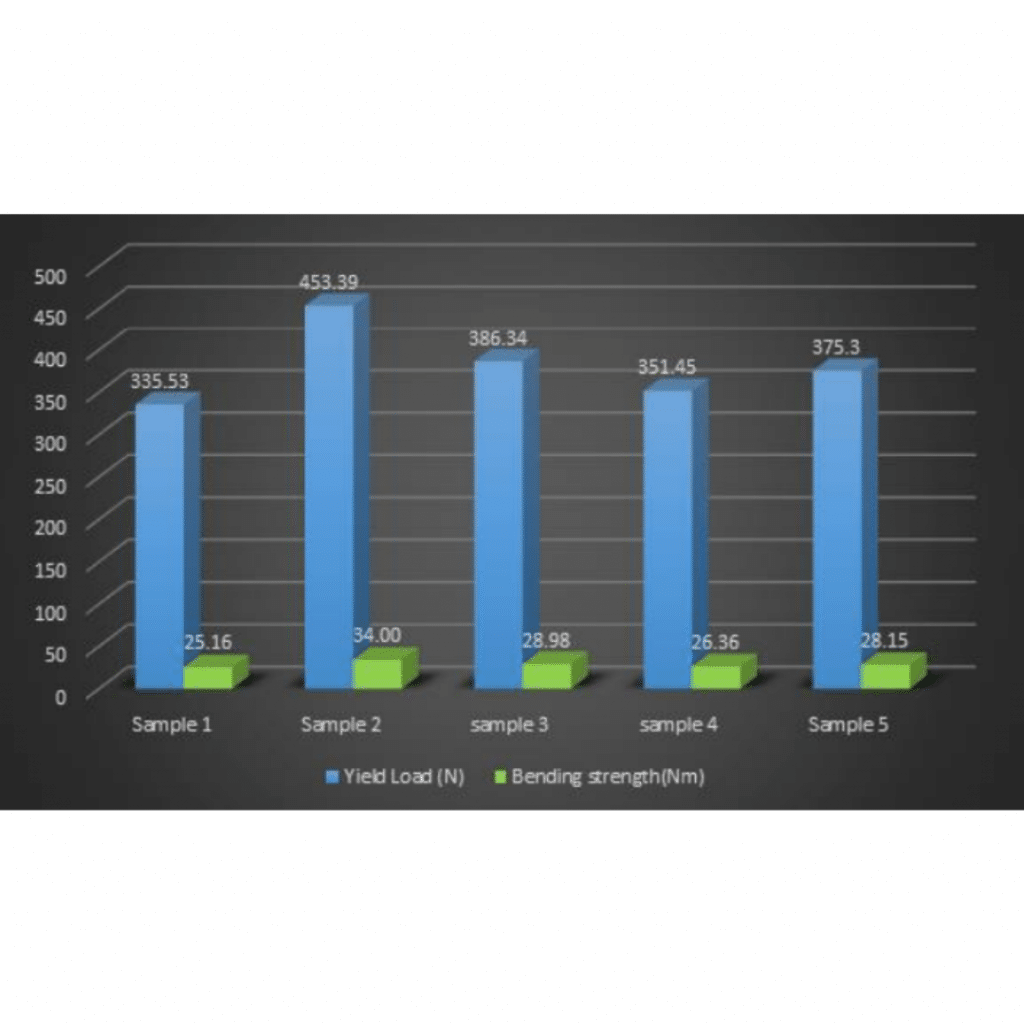

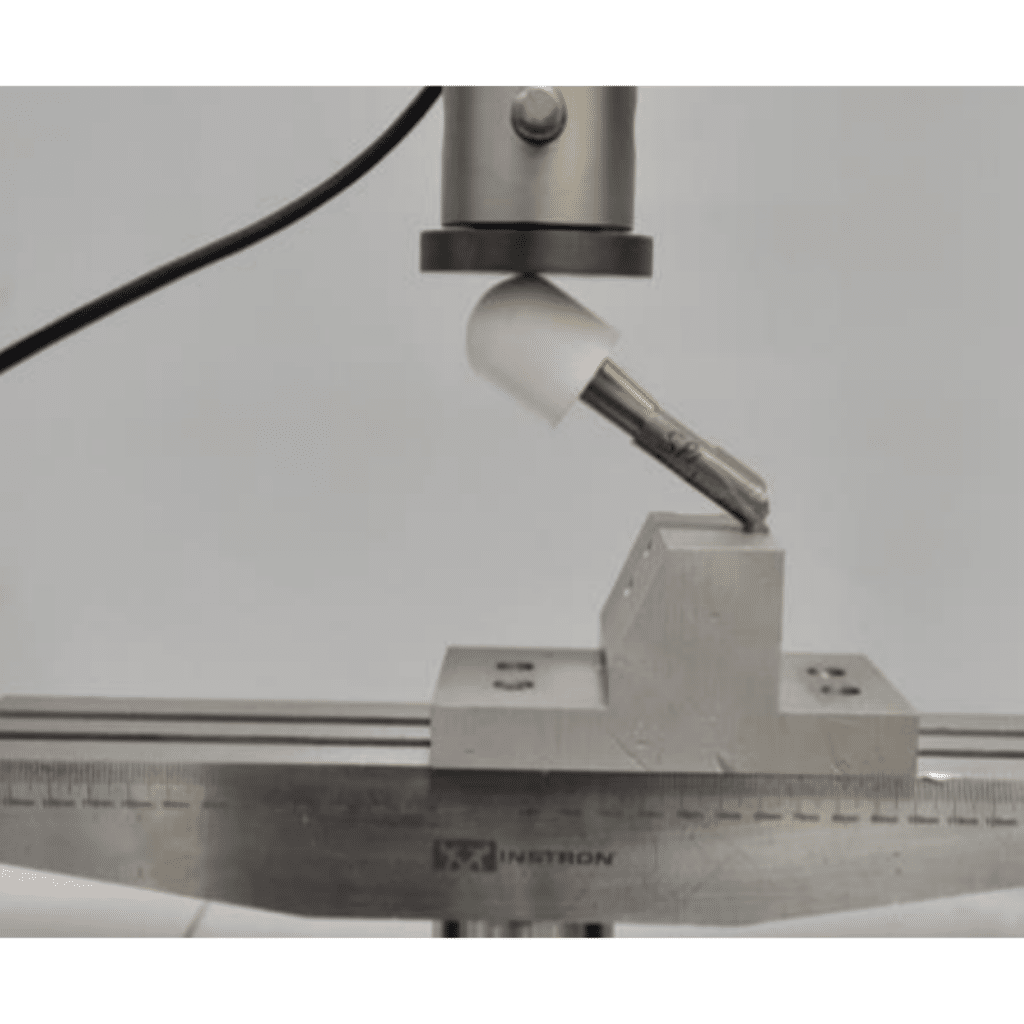

Mechanical Testing

5.0mm Wise Lock Femoral Neck Plate 2 Holes Titanium

Tarsus Nail Catalogue

Tarsus Nail Surgical Technique

Tarsus Nail IFU

CE Approved

USFDA 5K Cleared

Mechanical Testing

Certifications
