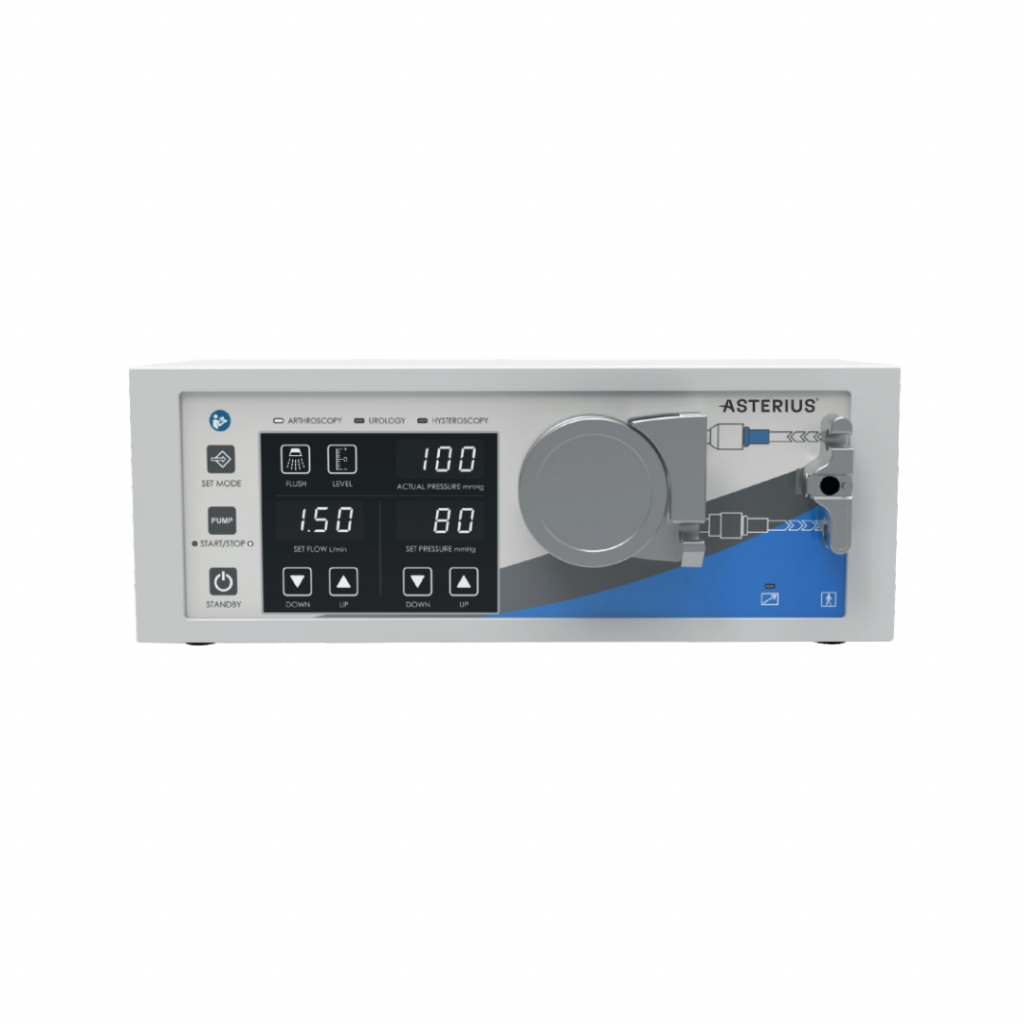

Irrigation Fluid Management System

Irrigation Fluid Management System

Product Features

  • Minimally Invasive Fluid Delivery:
    • Ensures a controlled and steady flow of irrigation fluid during surgical procedures.
  • Precise Calibration:
    • LEVEL function allows for accurate system measurement and calibration.
  • Efficient Rinsing Mechanism:
    • FLUSH function provides effective and fast rinsing of the operating area.
  • Multiple Operating Modes:
    • The Universal Fluid Pump supports three working modes:
      1. Arthroscopy
      2. Urology
      3. Hysteroscopy
  • Tubing Compatibility:
    • Works with both disposable (Single-Use Tubing Set – SUTS) and day-use tubings (Day-Use Pump Part – DUPP).
  • User-Friendly Design:
    • Big and clear display with an intuitive menu for easy operation.
    • Non-volatile memory retains recent settings for quick setup.
  • Safety & Accuracy:
    • Acoustic and visual signals ensure correct tubing installation.
  • Remote Control Option:
    • Allows surgeons to adjust fluid flow and pressure without being near the control panel.
  • Modern & Aesthetic Design:
    • Ergonomically designed for seamless integration into surgical environments.

Technical Parameters:

  • Power Consumption:
    • 20 VA (at 100V AC power supply)
    • 35 VA (at 240V AC power supply)
  • Voltage Range: 100 – 240V AC
  • Frequency: 50/60 Hz
  • Device Dimensions: 306 mm x 330 mm x 120 mm (DxWxH)
  • Weight: Approx. 7.6 kg
  • IP Code: IP X1 (protection against dripping water).

Intended Use

The Irrigation Fluid Management System is designed for use in:

  • Arthroscopy, urology, and hysteroscopy surgeries, ensuring controlled and precise irrigation.
  • Endoscopic procedures, enhancing fluid management for improved surgical visualization.
  • Operating rooms and surgical suites, facilitating effective and reliable fluid delivery.
  • Medical training and education, allowing efficient demonstration of fluid management techniques.
