HD Monitor for Arthroscopy Tower | Medical Grade Surgical Display

HD - Monitor

HD-Monitor

Product Overview

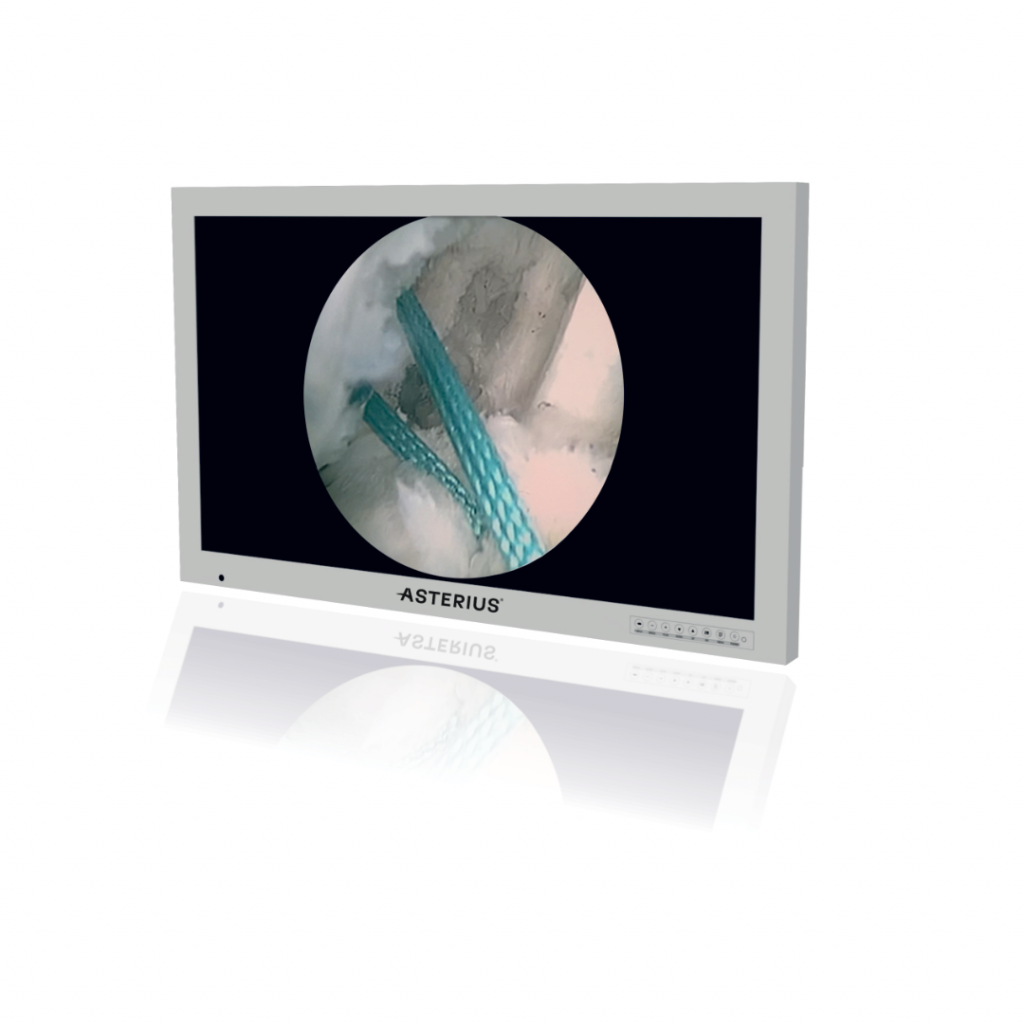

The HD Medical Monitor (32") is a high-resolution display specifically designed for arthroscopic surgeries. Featuring a full HD 1920 x 1080 pixel resolution with a high-quality LED backlight, it ensures accurate color representation of the operating field. This monitor provides both digital and analog outputs, offering flexibility in displaying video at various HD resolutions to suit different surgical and medical imaging needs.

HD - Monitor

HD-Monitor

Product Overview

Product Features

Features

High-Quality Display:
- 32-inch TFT LCD (LED) panel with 1920 x 1080 Full HD resolution.
- 16:9 aspect ratio for widescreen viewing.
- Brightness: 450 cd/m² for clear and bright visualization.
- Contrast ratio: 1300:1, ensuring sharp image contrast.
- Anti-glare surface treatment for better visibility in bright environments.
- Wide viewing angle: 178° (right/left & up/down) for consistent image quality.
Low Latency & Performance:
- Fast response time: 25ms (gray to gray).
- 16.7 million colors, delivering precise color reproduction.
Flexible Input & Output Options:
- Input Signals:
  - 2 x DVI-D
  - 2 x SD/HD/3G-SDI (BNC)
  - 2 x SOG
  - 1 x VGA (D-sub)
  - 1 x Composite Video (BNC)
  - 1 x S-Video (DIN)
  - 1 x Component (RGBS, YPbPr) (5 x BNC)
- Output Signals:
  - 2 x DVI-D
  - 2 x SD/HD/3G-SDI (BNC)
  - 2 x SOG
  - 1 x Composite Video (BNC)
  - 1 x S-Video (DIN)
  - 1 x Component (RGBS, YPbPr) (5 x BNC)
Durability & Protection:
- IP Code: IP30 (overall), IP31 (front side only) for protection against dust and water exposure.
- IK Code: IK05 with 5H AR glass, ensuring impact resistance.
Compact & Lightweight:
- Monitor Dimensions: 770(W) x 471.5(H) x 80.5(D) mm.
- Weight: 13.18 kg (monitor with cover), 19.14 kg (shipping package).
Power & Accessories:
- Power Supply: AC/DC Adapter (AC 100-240V~, DC 24V 6.25A).
- Power Consumption: 75W max.
- Included Accessories:
  - User Manual, AC-DC adapter, AC power cord, DVI-D cable, BNC cable, Remote Control, Screw BH M4 x 14.

Intended Use

The HD Medical Monitor (32″) is designed for use in medical and surgical environments where high-quality imaging is essential. It is ideal for:

Arthroscopic and minimally invasive surgeries, providing clear visualization of the surgical area.
Medical diagnostics and imaging, ensuring accurate color reproduction for better diagnosis.
Endoscopy and laparoscopy procedures, where high-definition imaging is critical.
Surgical training and education, offering detailed visuals for demonstrations.
Hospitals and surgical centers, delivering high-quality, real-time imaging for medical professionals.
