A multitool or oscillating tool is a power tool that oscillates (rather than rotating or reciprocating), powered by battery or mains. Various attachments and blades are available, making the device to be used for various purpose. Cutting blades are standard saw blades with various tooth configurations for cutting different material. The Oscillating Saw is designed and manufactured according to the characteristic of cutting on the bony tissue during the surgical operations. It is simple to operate, and the trigger is pressure sensitive for variable speed operation.

Oscillating Saw

Battery & Charger

Oscillating Saw

Oscillating Saw Blades

Oscillating Saw Drill Hand Piece

Sagittal Saw Blades

Product Overview

Product Features

Oscillating Saw Drill

Reduced weight, increased power and durability.
360° adjustable.
Eight position rotating collet.
Variable speed control trigger for maximum control.
Totally sealed to allow use in a washer/sanitizer.
For Sterilization, 120° over 30 minutes and 135° over 15 minutes.
Battery cannot be Sterilized.
Easier ergonomics and handling facility.
Minimizes the surgery time.
Wide range of attachments offers flexible use of a different drill, reaming and saw blades sizes.

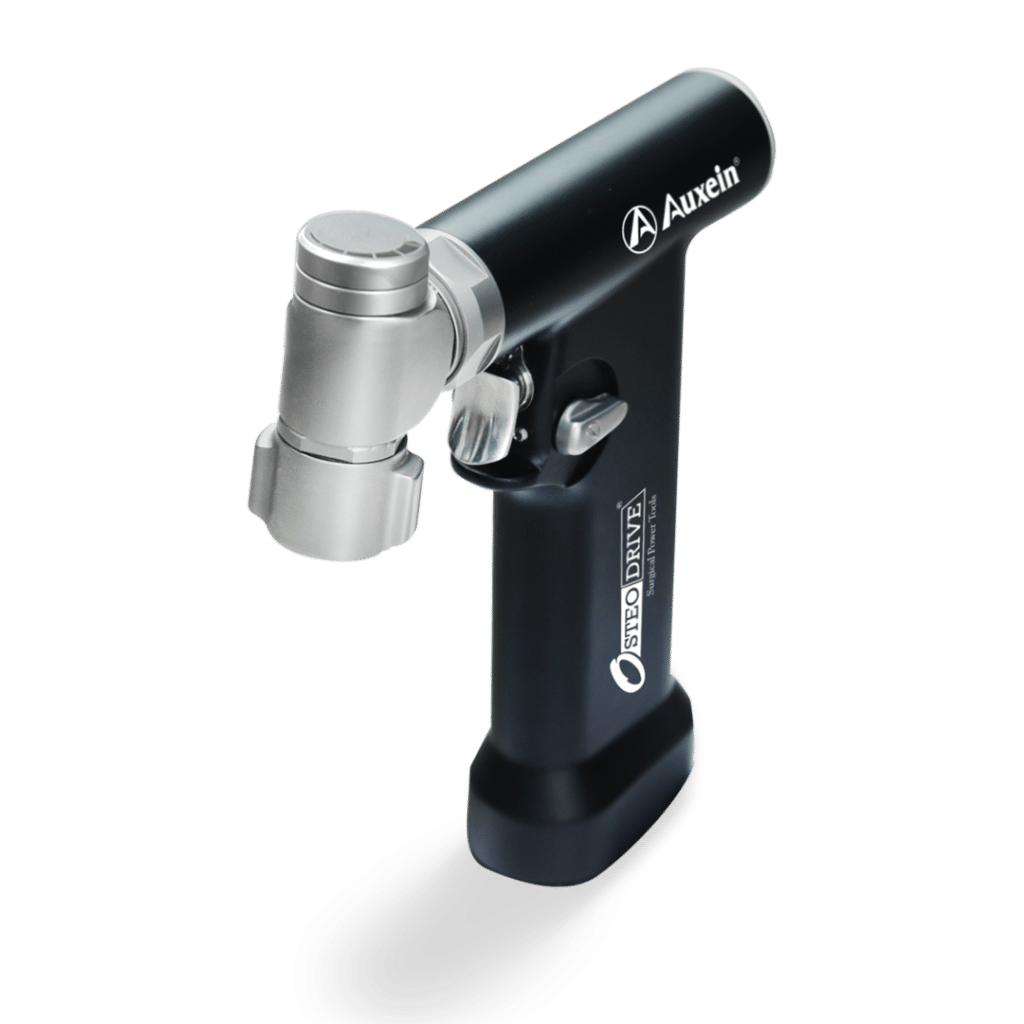

Osteodrive Power Tool Design

Blade Collet — Insert a blade here. Also used to rotate the blade to any of four (4) positions at 90° intervals for appropriate surgical access. Blade positioning must be done prior to locking the blade in the collet. To rotate, grasp the blade at the base of the collet and rotate to the desired position.
Blade Locking Knob — Rotate counterclockwise to open the collet to insert a blade. Rotate clockwise to lock the blade securely in place.
Rotating Head- The rotating head gives the surgeon the ability to position the cutting blade for appropriate surgical access. The oscillator hand piece contains an 8 position, 45° indexing head. To position the rotating head, grasp the rotating head, pull it out from the hand piece body, and turn it to the desired position.
Activation Trigger — used to activate the hand piece. Depress when the mode lever is in the “run” position to operate the hand piece.
Mode Lever — to operate the hand piece, place in the “run” position. Place in the “safe” position before connecting or removing an accessory and during non-use of the hand piece.
Battery Receptacle — the battery attaches here.
Battery Release Lever- Depress this lever to remove the battery from the hand piece.

Intended Use

The Oscillating Saw and their accessories, perform cutting of soft tissue and bone. The fields of application include: orthopedic, arthroscopic, hand and foot surgical procedures.
