Expert Tibia Nailing

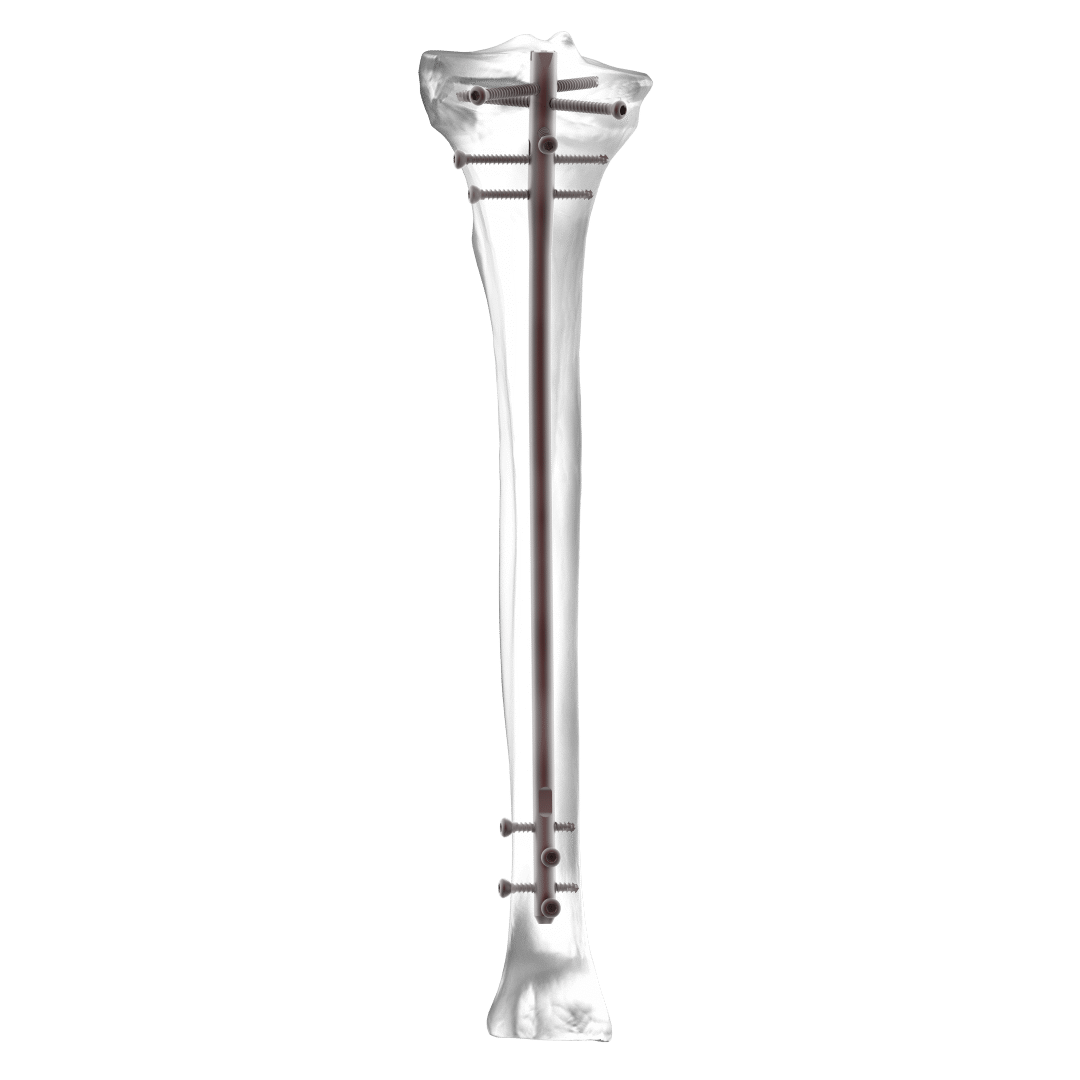

Expert Tibia Nail <br>With Bone

Expert Tibia Nail With Bone

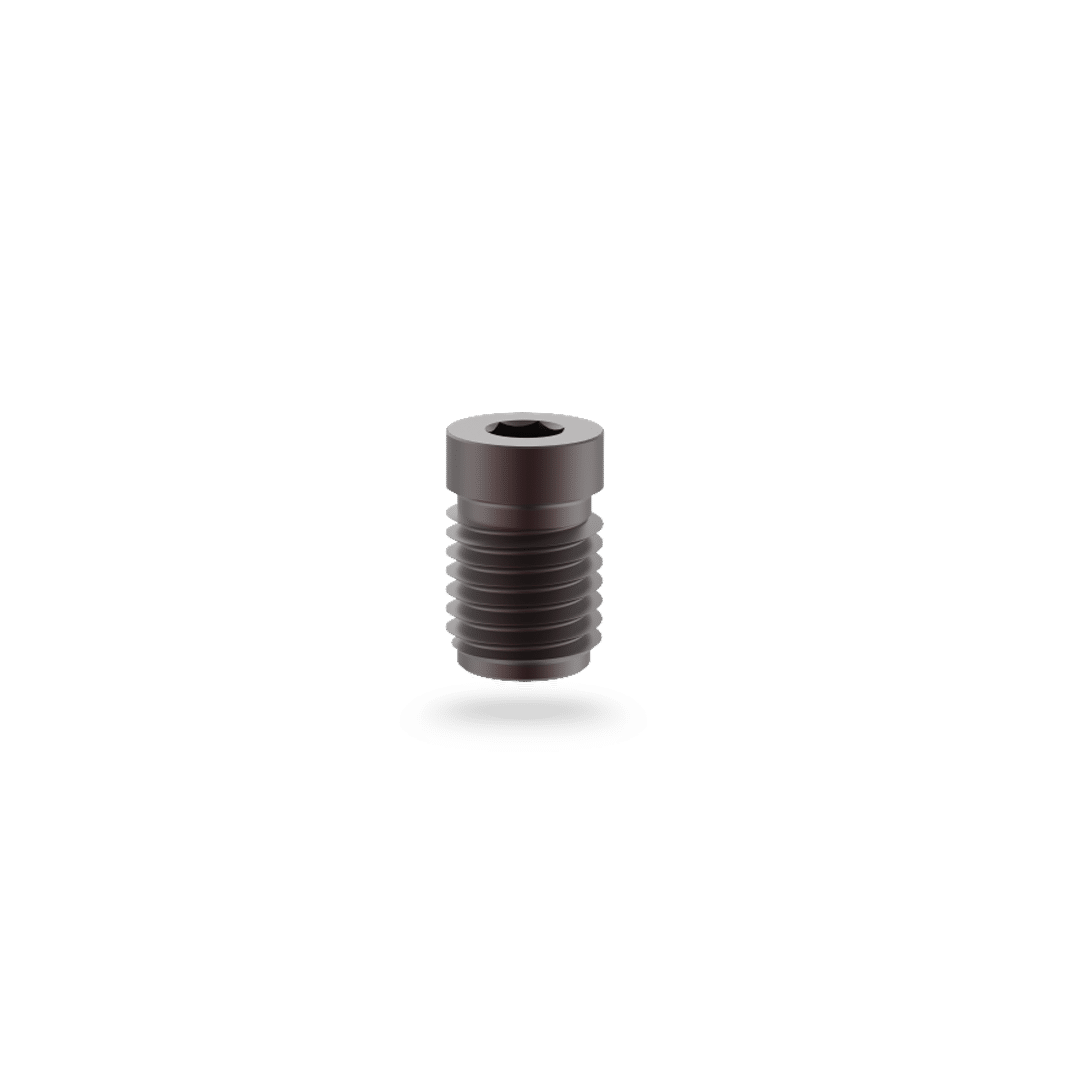

End Cap For Expert <br>Tibia Nail

End Cap For Expert Tibia Nail

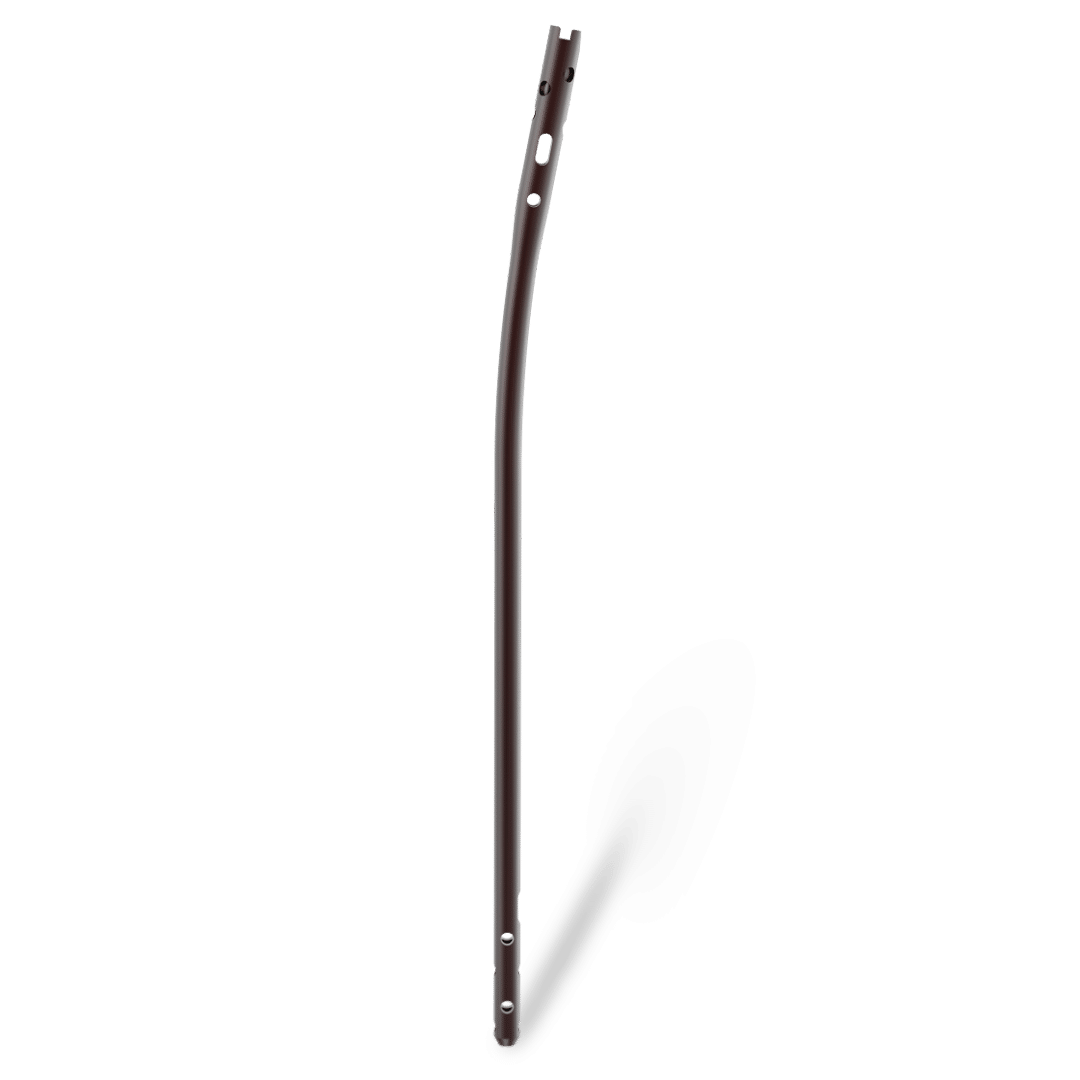

Expert Tibial Nail

Expert Tibial Nail

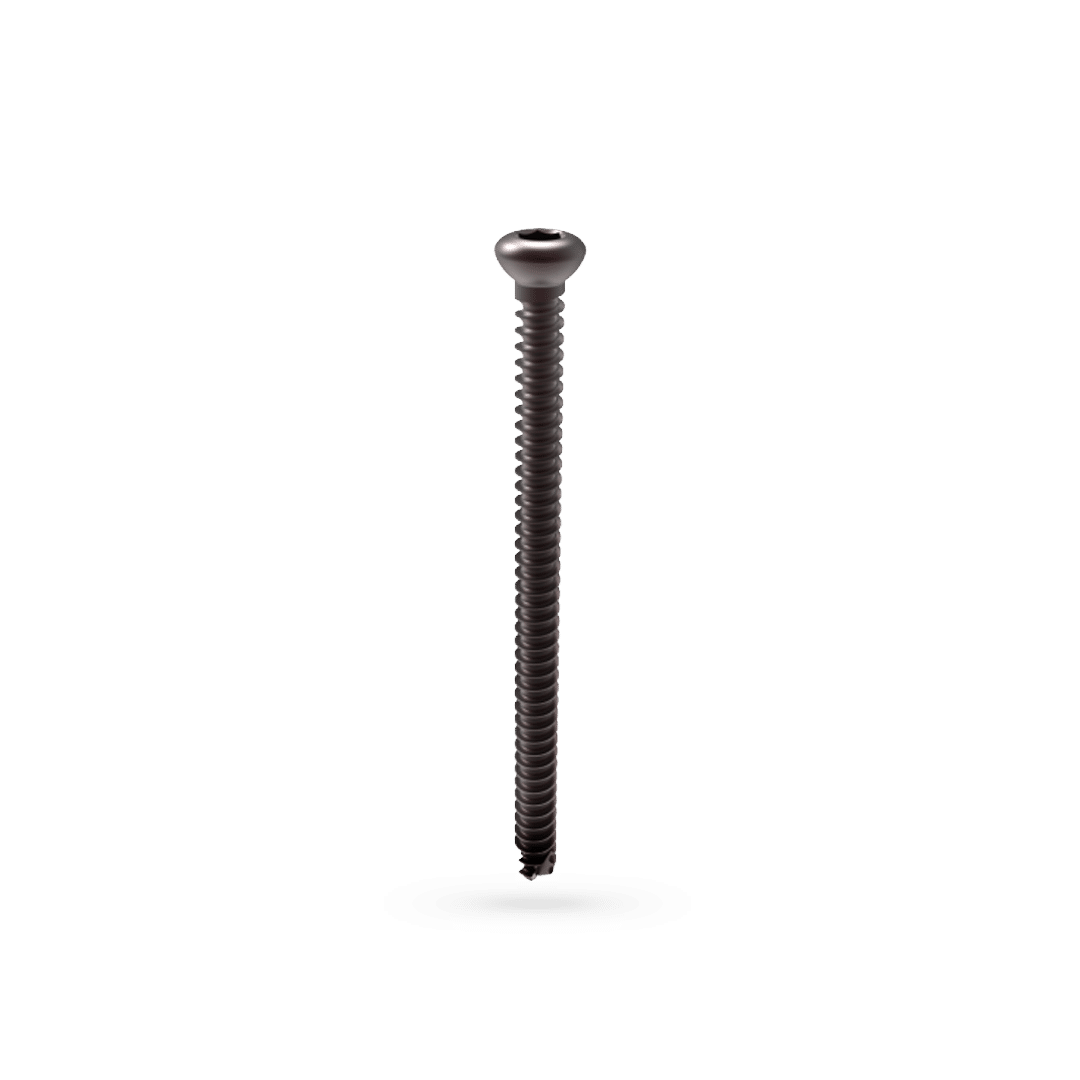

Ø4.4mm Locking Bolt, <br>Self-Tapping, For <br>Expert Tibia Nail

Ø4.4mm Locking Bolt, Self-Tapping, For Expert Tibia Nail

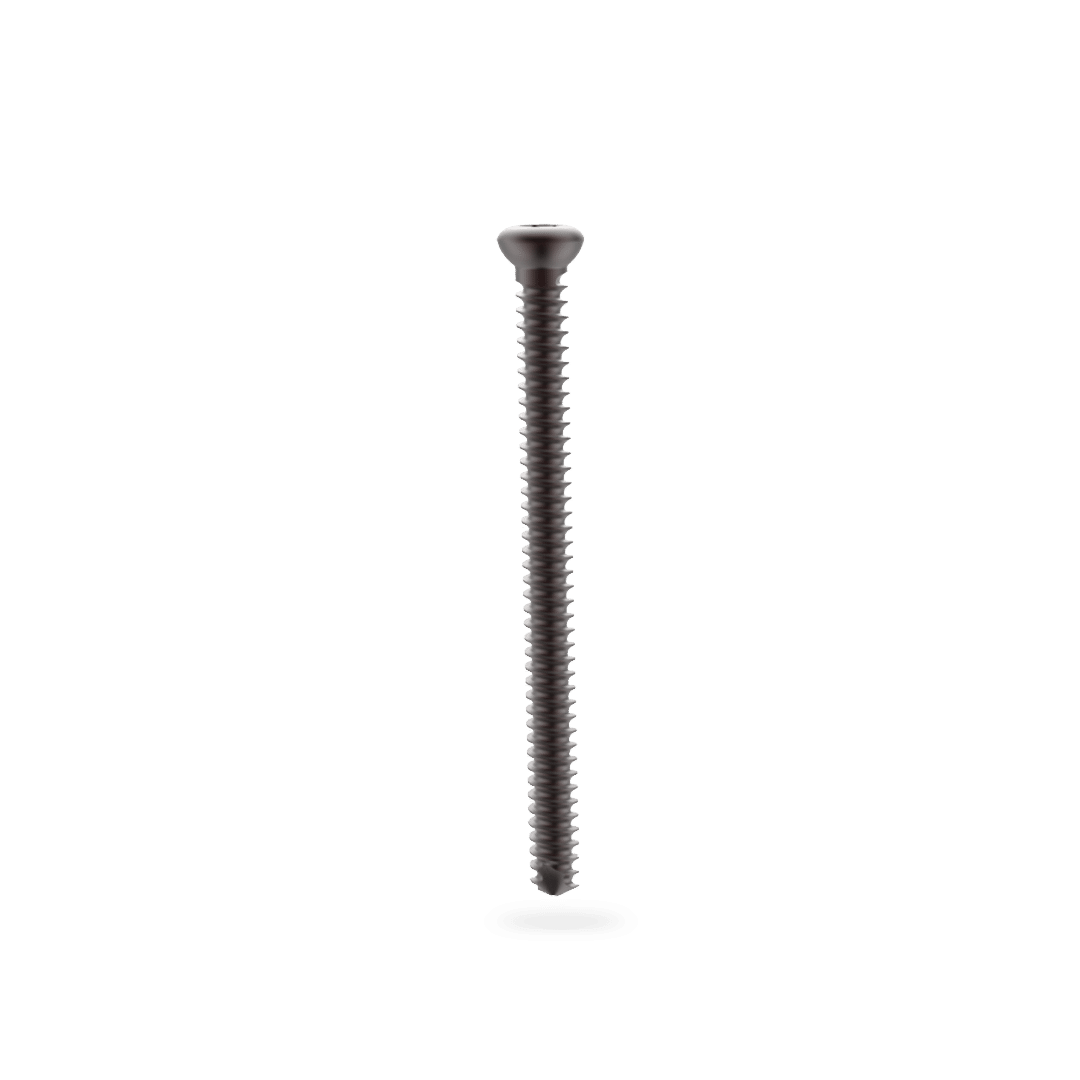

Ø4.8mm Locking Bolt, <br>Self-Tapping, For <br>Expert Tibia Nail

Ø4.8mm Locking Bolt, Self-Tapping, For Expert Tibia Nail

Product Overview

The Expert Tibia Nailing System is a comprehensive system of implants and instruments designed for the treatment of tibia fractures. It utilizes locking technology with embedded locking screws to mechanically compress the fracture and aid in restoring the natural shape of the fractured bone.

Expert Tibia Nail <br>With Bone

Expert Tibia Nail With Bone

End Cap For Expert <br>Tibia Nail

End Cap For Expert Tibia Nail

Expert Tibial Nail

Expert Tibial Nail

Ø4.4mm Locking Bolt, <br>Self-Tapping, For <br>Expert Tibia Nail

Ø4.4mm Locking Bolt, Self-Tapping, For Expert Tibia Nail

Ø4.8mm Locking Bolt, <br>Self-Tapping, For <br>Expert Tibia Nail

Ø4.8mm Locking Bolt, Self-Tapping, For Expert Tibia Nail

Product Overview

The Expert Tibia Nailing System is a comprehensive system of implants and instruments designed for the treatment of tibia fractures. It utilizes locking technology with embedded locking screws to mechanically compress the fracture and aid in restoring the natural shape of the fractured bone.

Expert Tibia Nailing

Expert Tibia Nail <br>With Bone

Expert Tibia Nail With Bone

End Cap For Expert <br>Tibia Nail

End Cap For Expert Tibia Nail

Expert Tibial Nail

Expert Tibial Nail

Ø4.4mm Locking Bolt, <br>Self-Tapping, For <br>Expert Tibia Nail

Ø4.4mm Locking Bolt, Self-Tapping, For Expert Tibia Nail

Ø4.8mm Locking Bolt, <br>Self-Tapping, For <br>Expert Tibia Nail

Ø4.8mm Locking Bolt, Self-Tapping, For Expert Tibia Nail

Product Overview

The Expert Tibia Nailing System is a comprehensive system of implants and instruments designed for the treatment of tibia fractures. It utilizes locking technology with embedded locking screws to mechanically compress the fracture and aid in restoring the natural shape of the fractured bone.

Product Features

Advanced solutions

Three unique and innovative locking options, in combination with cancellous bone locking screws, enhance stability for proximal third fractures.
Two medio-lateral (ML) locking options allow for direct compression or secondary controlled dynamization.

Improved stability

End caps securely lock the most proximal oblique locking screw, creating a fixed-angle construct.
The end cap prevents tissue ingrowth and facilitates nail extraction.
Self-retaining Stardrive recess enables effortless and secure end cap pick-up and insertion.

Advanced Nailing design

A new anatomic bend facilitates nail insertion.
Titanium alloy construction provides improved mechanical and fatigue properties.
Cannulated nails (8 mm to 12 mm) allow for reamed or unreamed techniques and enable insertion over a guide wire.

Advanced distal locking options

The distal oblique locking option prevents soft tissue damage and increases the stability of the distal fragment.
Two medio-lateral (ML) and one antero-posterior (AP) locking options ensure the stability of the distal fragment.

Multidirectional locking options for improved stability

All locking screws are designed with a double thread for better contact, resulting in enhanced stability.
Thread closer to the screw head provides improved bone purchase and stability.
Titanium alloy construction enhances mechanical and fatigue properties.
Self-retaining Stardrive recess allows for improved torque transmission, increased resistance to stripping compared to a hex recess, and secure locking screw pick-up.

Standard Locking Screws

The larger cross-section for improved mechanical resistance.
4.8mm Locking Bolts for most proximal Locking.
4.4 mm Locking Bolt for Distal Locking.

Intended Use

The Expert Tibia Nail is indicated for use in cases of:

41-A2/A3 fractures
All shaft fractures
43-A1/A2/A3 fractures
Combinations of these fractures.

Related Documents

Catalogue

Expert Tibia Nailing System

Certificate

Surgical Technique

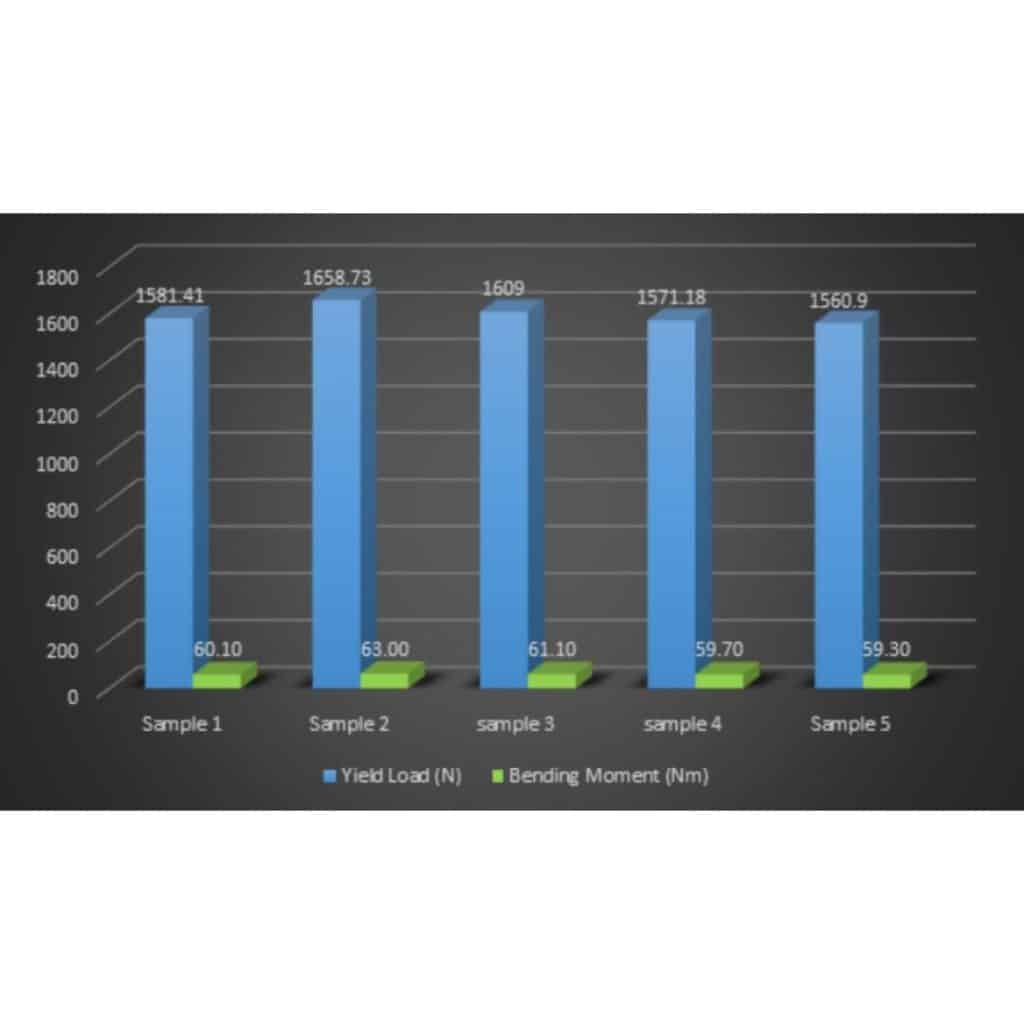

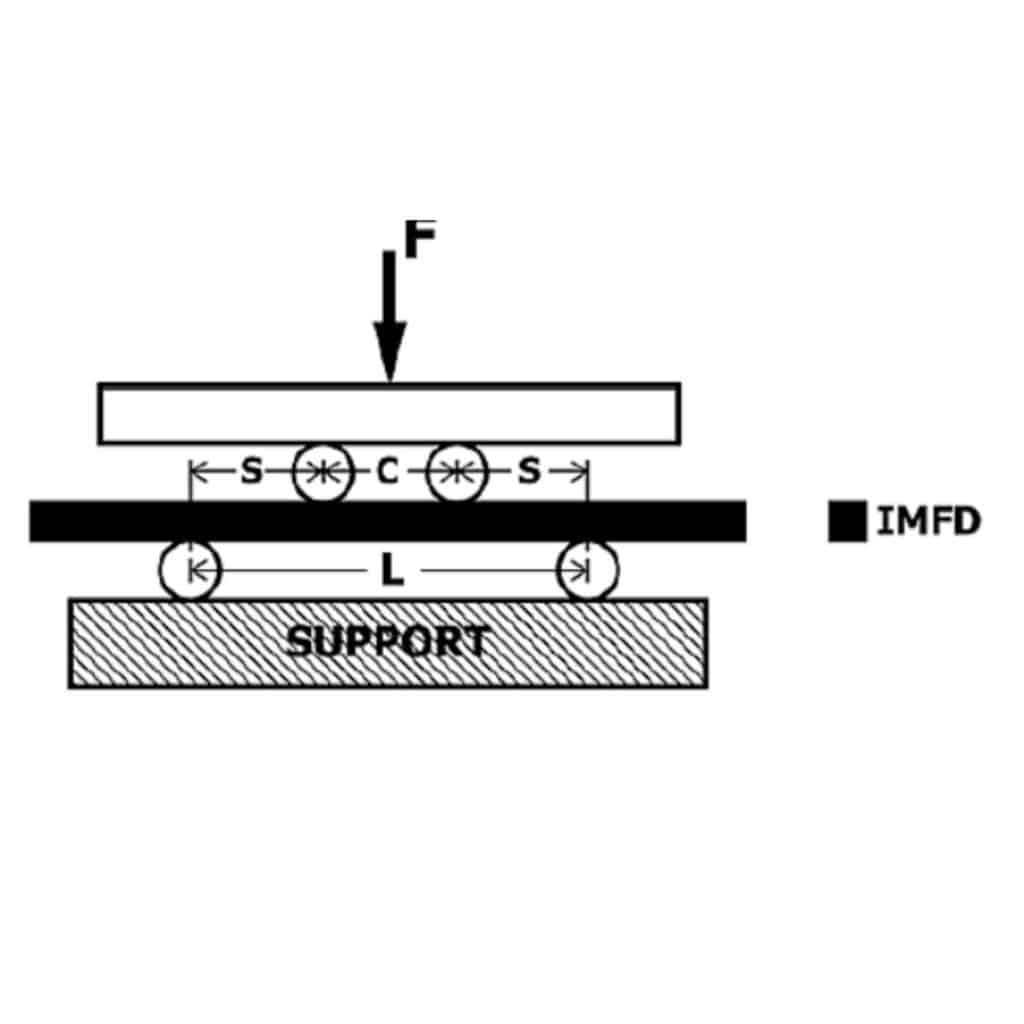

Mechanical Testing

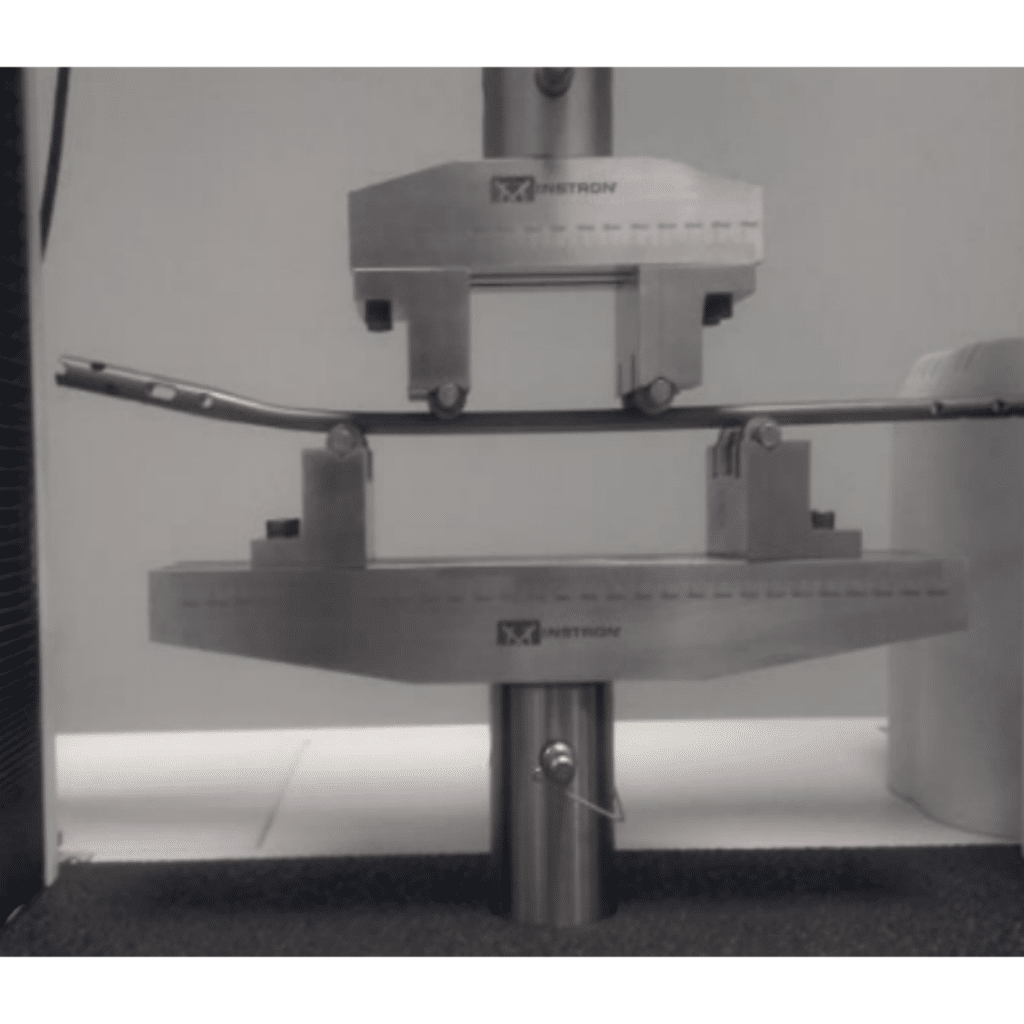

Expert Tibia Nail, Dia. 8mm and X Length 375mm

IFUS

Expert Tibia Nailing Catalogue

Expert Tibia Nailing Surgical Technique

Tarsus Nail IFU

CE Approved

USFDA 510K Cleared

Mechanical Testing
